● FEATURES 特性
1.磁屏蔽结构,闭合磁路,抗电磁干扰强,超低蜂鸣声,可高密度安装.
2.小体积,大电流,范围可到60A,在高频和高温环境下保持优良
的温升电流及饱和电流特性.
3.低损耗合金粉末压铸,低电阻.结构牢固,产品精准度高.
4.工作频率范围广,可达5MHz以上. 无卤环保产品.
● APPLICATIONS 用途
1.PAD/Notebook/Desktop/Server applications PAD,笔记本电脑,台式机,服务器,
2.DC/DC converter DC/DC转换器
● PART NUMBERING SYSTEM 品名系统
● SHAPES AND DIMENSIONS 外形尺寸 (Unit:mm)
TYPE(型号) | A | B | C | D | E | Fig |
YZXTYH201610 | 2.0±0.2 | 1.6±0.2 | 1.0 Max | 0.6±0.3 | / | 1 |

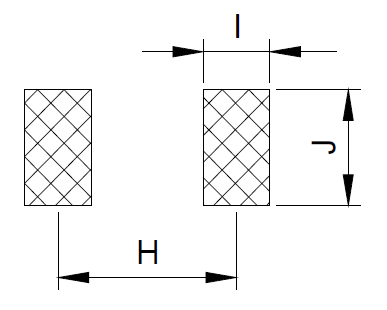

TYPE(型号) | H | I | J |
YZXTYH201610 | 1.5 | 1 | 1.8 |
● SPECIFICATION TABLE:
PART NUMBER |
INDUCTANCE (μH) | DCR (mΩ) @25℃ | Heat Rating Current DC Amps. Idc (A) | Saturation Current DC Amps. Isat（A） | |
Typical | Maximum | Typical | Typical | ||
YZXTYH201610-0.33uH/M | 0.33±20% | 20.0 | 23.0 | 4.50 | 6.00 |
YZXTYH201610-0.47uH/M | 0.47±20% | 23.0 | 27.0 | 4.40 | 5.60 |
YZXTYH201610-0.68uH/M | 0.68±20% | 30.0 | 35.0 | 4.00 | 5.40 |
YZXTYH201610-1uH/M | 1±20% | 35.0 | 41.0 | 4.00 | 4.60 |
YZXTYH201610-1.5uH/M | 1.5±20% | 64.0 | 74.0 | 3.20 | 3.50 |
YZXTYH201610-2.2uH/M | 2.2±20% | 123.0 | 135.0 | 2.30 | 3.00 |
YZXTYH201610-4.7uH/M | 4.7±20% | 213.0 | 235.0 | 1.50 | 1.90 |
YZXTYH201610-10uH/M | 10±20% | 580.0 | 667.0 | 0.70 | 0.90 |
Remark:
● All test data is reference to 25℃ ambient.
● Test Condition：1MHz，1Vrms
● Idc： DC current (A) that will cause an approximate △T of 40℃
● Isat ：DC current (A) that will cause L0 to drop approximately 30% Typ.
● Operat between temperature range -40℃ to +125℃(Including self - temperature rise)
● Absolute maximum voltage: DC 25V
