● FEATURES 特性
1. High Q value and high self-resonant frequency with Ferrite material.
高Q值高SRF的铁氧体材料.
2. Small chip suitable for surface mounting.
小尺寸，表面贴装.
3. Tight inductance tolerance and high reliability.
高精度，高可靠性.
● APPLICATIONS 用途
1. Mobile phone TD-LTE/5G communication. 移动电话，TD-LTE , 5G通讯.
2. High frequency circuit in communication equipments. 高频线路的通讯设备.
3. Bluetooth , W-LAN , Broadband network. 蓝牙，无线宽带网络.
● PART NUMBERING SYSTEM 品名系统
(1) Type 型号 (2) External Dimensions 外形尺寸 （3）Indutance 电感值
(4) Indutance Tolerance 电感值公差（J:±5% K:±10% M:±20%)

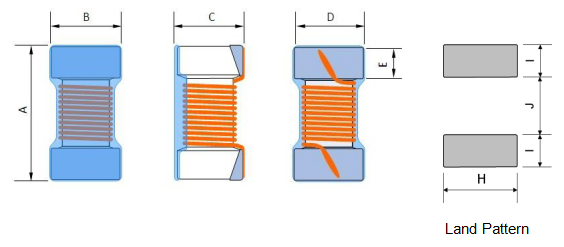

● SHAPES AND DIMENSIONS 外形尺寸 (Unit:mm)
TYPE(型号) | A | B | C | D | E | H | I | J |
YZXTGP1210 | 3.65 Max | 2.95 Max | 2.7 Max | 2.4 Typ | 0.5 Typ | 3.02 ref | 1.02 ref | 1.78 ref |

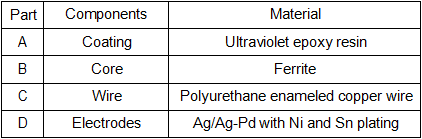

● STRUCTURE AND MATERIAL
● ELECTRICAL CHARACTERISTICS
1. Operating and storage temperature range (individual chip without packing): -25℃ to +125℃
2. Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)
● TEST AND MEASUREMENT PROCEDURES
1. Inductance (L)
Test equipment: Keysight E4991B / Agilent 16197A or equivalent Test signal: -13dBm or 10mA
2. DC Resistance (DCR)
Test equipment: Agilent34420A / Agilent 4338B or equivalent
3. Q Factor (Q)
Test equipment: Keysight E4991B / Agilent 16197A or equivalent
4. Self-Resonant Frequency (SRF)
Test equipment: Keysight E4991B / Agilent 16197A / HP 8753E or equivalent Test signal: -20dBm or 50 mV
5. Rated Current (Irms)
Irms is direct electric current as chip surface temperature rose just 20 against chip initial surface temperature (Ta)
● RECOMMENDED SOLDERING TECHNOLOGIES

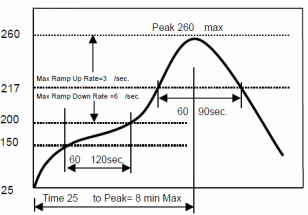

Re-flowing Profile
Preheat condition: 150~200 /60~120sec. Allowed time above 217C: 60~90sec.
Max temp: 260
Max time at max temp: 10sec Solder paste: Sn/3.0Ag/0.5Cu Allowed Reflow time: 2 times max
● SPECIFICATION TABLE:
YZXTGP1210 Series
Part Number | Inductance | Tolerance | Min. Quality Factor | L/Q Test Freq. | Max. DC Resistance | Max. Rated Current | Self-resonant Frequency |
Symbol | L | Q | Freq. | DCR | Irms | SRF (Min) | |
Units | MHz | Ω | mA | MHz | |||
YZXTGP1210-0.12uH/□ | 120nH | J,K,M | 30 | 25 | 0.22 | 450 | 500 |
YZXTGP1210-0.15uH/□ | 150nH | J,K,M | 30 | 25 | 0.40 | 450 | 450 |
YZXTGP1210-0.18uH/□ | 180nH | J,K,M | 30 | 25 | 0.28 | 450 | 400 |
YZXTGP1210-0.22uH/□ | 220nH | J,K,M | 30 | 25 | 0.32 | 450 | 350 |
YZXTGP1210-0.27uH/□ | 270nH | J,K,M | 30 | 25 | 0.36 | 450 | 320 |
YZXTGP1210-0.33uH/□ | 330nH | J,K,M | 30 | 25 | 0.40 | 450 | 300 |
YZXTGP1210-0.39uH/□ | 390nH | J,K,M | 30 | 25 | 0.45 | 450 | 250 |
YZXTGP1210-0.47uH/□ | 470nH | J,K,M | 30 | 25 | 0.50 | 450 | 220 |
YZXTGP1210-0.56uH/□ | 560nH | J,K,M | 30 | 25 | 0.55 | 450 | 180 |
YZXTGP1210-0.68uH/□ | 680nH | J,K,M | 30 | 25 | 0.60 | 450 | 160 |
YZXTGP1210-0.82uH/□ | 820nH | J,K,M | 30 | 25 | 0.65 | 450 | 140 |
YZXTGP1210-1uH/□ | 1uH | J,K,M | 30 | 7.9 | 0.70 | 400 | 120 |
YZXTGP1210-1.2uH/□ | 1.2uH | J,K,M | 30 | 7.9 | 0.75 | 390 | 100 |
YZXTGP1210-1.5uH/□ | 1.5uH | J,K,M | 30 | 7.9 | 0.85 | 370 | 85 |
YZXTGP1210-1.8uH/□ | 1.8uH | J,K,M | 30 | 7.9 | 0.90 | 350 | 80 |
YZXTGP1210-2.2uH/□ | 2.2uH | J,K,M | 30 | 7.9 | 1.00 | 320 | 75 |
YZXTGP1210-2.7uH/□ | 2.7uH | J,K,M | 30 | 7.9 | 1.10 | 290 | 70 |
YZXTGP1210-3.3uH/□ | 3.3uH | J,K,M | 30 | 7.9 | 1.20 | 260 | 60 |
YZXTGP1210-3.9uH/□ | 3.9uH | J,K,M | 30 | 7.9 | 1.30 | 250 | 55 |
YZXTGP1210-4.7uH/□ | 4.7uH | J,K,M | 30 | 7.9 | 1.50 | 224 | 50 |
YZXTGP1210-5.6uH/□ | 5.6uH | J,K,M | 30 | 7.9 | 1.60 | 204 | 45 |
YZXTGP1210-6.8uH/□ | 6.8uH | J,K,M | 30 | 7.9 | 1.80 | 180 | 40 |
YZXTGP1210-8.2uH/□ | 8.2uH | J,K,M | 30 | 7.9 | 2.00 | 170 | 35 |
YZXTGP1210-10uH/□ | 10uH | J,K,M | 25 | 7.9 | 2.10 | 150 | 30 |
YZXTGP1210-12uH/□ | 12uH | J,K,M | 25 | 7.9 | 2.50 | 140 | 20 |
※□: Please specify the inductance tolerance code (J=±5%, K=±10%, M=±20%).
